Fretwork Edge Styles

There are three versions of edge detail for the fretwork screens.

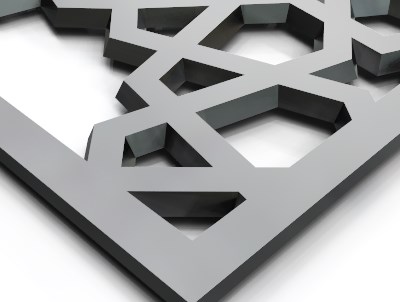

If the part no. is prefixed with '30' then the edge detail is chamfered with sharp internal corners as diagram (A).  ( PLEASE NOTE THIS IS VIEWABLE FROM ONE SIDE ONLY ).
Should you require this feature on both sides, you will have to bond two screens back-to-back.

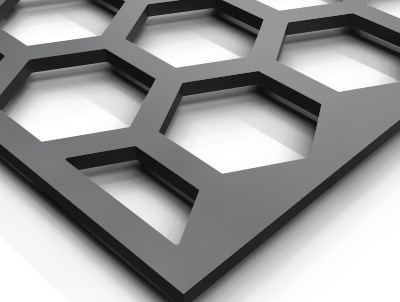

If the part no. is prefixed with '60' then the edge detail is straight cut and will have an internal radius on internal corners as diagram (B).
BOTH FACES LOOK THE SAME - IDEAL FOR DIVIDERS THAT ARE SEEN FROM BOTH SIDES.

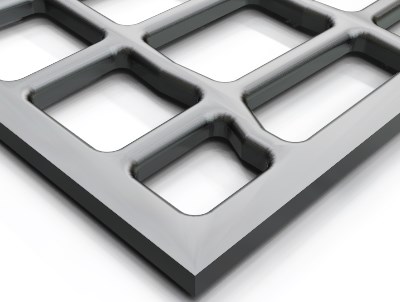

If the part no. is prefixed with '70' then the edge detail is straight cut with a 10mm Radius and will have an internal radius on internal corners as diagram (C).
(PLEASE NOTE THIS IS VIEWABLE FROM ONE SIDE ONLY)
Should you require this feature on both sides, you will have to bond two screens back-to-back.

( Diag A ) Edge Style 30 - 3D Chamfered Edges	( Diag B ) Edge Style 60 - Straight Edges	( Diag C ) Edge Style 70 - R-10mm Radius Edges
